E1.10 series

Here you can configure your e-chain system® individually. All entries and changes are taking over to the part list which is situated at the end of the page.

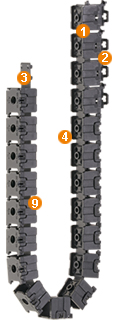

Series E1.10 – chain, openable along the outer radius

1. Easy to shorten - Simply cut segment
2. Very easy to fill using openable lid
3. Easy to lengthen - strips are easily joined
4. Easy fastening to the surface using holes on the chain link
5. Cost-effective
6. Various materials and colours available upon request
7. Compact design with smooth outer contour
8. Strain relief possible (clip-in mounting bracket)
9. Lid can now be opened from one side, enabling easy closing

Series E1.10 is suitable for the following types of applications:

Vertical: Hanging applications, standing application
Horizontal: Unsupported applications

When to use Series E1.10

If a very small e-chain® with 10mm inner height is required
If a small amount of filling is required
If a cost-effective e-chain® is required
If easy installation is required
If a simple solution is required
For low duty cycles

When not to use Series E1.10

For higher loads
easy chain®
Zipper
For demanding tasks
easy chain®
Zipper

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
