Multi-axis e-chain® for robots - triflex® R


In 3D applications, rotating and pivoting movements are part of everyday life. Energy chains are required here, which safely guide and protect robot cables. The triflex R (TRE, TRC and TRL) energy chain has been specifically developed for demanding multi-axis robots. Due to its high tensile force absorption and high flexibility, the energy chain enables a rotation of about ±10° per chain link with complicated motions in the vertical axes. Compared to a cable protection hose, triflex R offers a defined bend radius, which greatly increases the service life of cables and hoses.

https://content.communication.igus.net/en/echain-for-robot-contact-expert

Product overview

I am looking for an energy supply system for axes 2-6 on an industrial robot, and also spare parts or accessories to guide cables or hoses safely on the robot.

Go to the products + shop

Consultation + upload function

I am unsure which energy chain I should choose for my application and need more support/information.

Contact + upload function

2 configurators

Go to the configurators

Here you will find the latest products and product enhancements in the field of robotics.

Go to the innovations

Extension of the robot equipment configurator by:

  • 20 collaborating robots from Universal Robots, Techman Robots, Kuka to Yaskawa
  • Quantec-2 from Kuka
  • GP series from Yaskawa
This results in an additional 2,000 variations, now with a total of up to 12,500 equipment variants in one tool.


Your benefits at a glance:

  • Defined minimum bend radius for safe cable and hose routing in moving applications

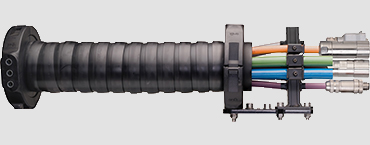

  • Also as a complete solution including  cables for the energy chain
  • High torsion resistance and defined torsion stop-dog
  • Modular design, can be easily lengthened and shortened

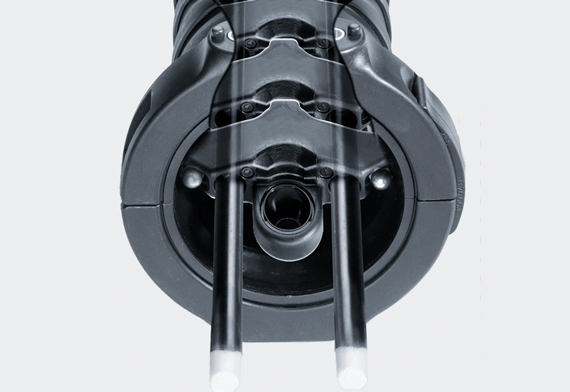

  • Option with fibre-rod
  • Easy assembly
  • Easy filling
  • Available from stock

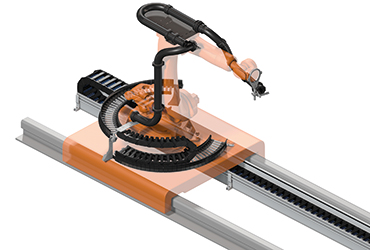

Robot

New possibilities for energy supply on the SCARA robot

SCARA cable solution gives stability at high speeds

  • Nominal hose width 29mm (inside)
  • Size 23 & 36mm in planning
  • The backbone for the cable guide on the Scara robot
  • Can be easily retrofitted
  • Rotary mounting
  • For increasing the service life of corrugated hoses used for Scara robots.

More on the SCARA cable solution

Energy chains for axis 2-6

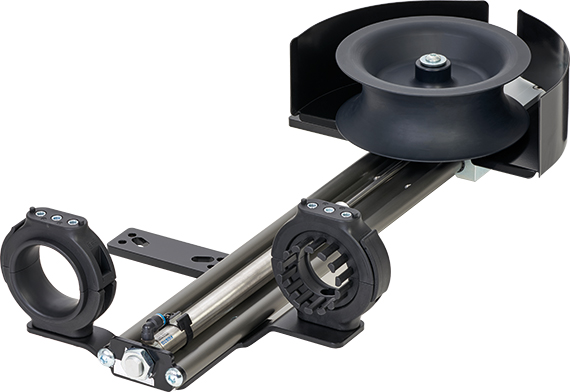

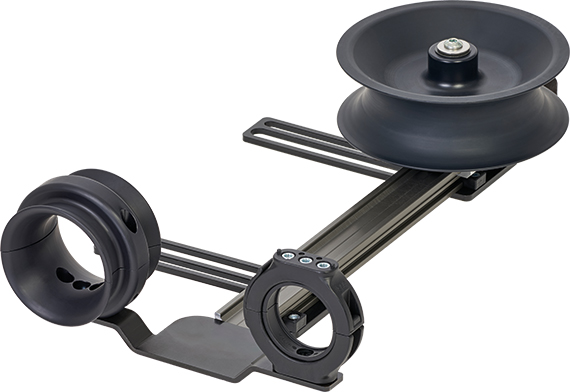

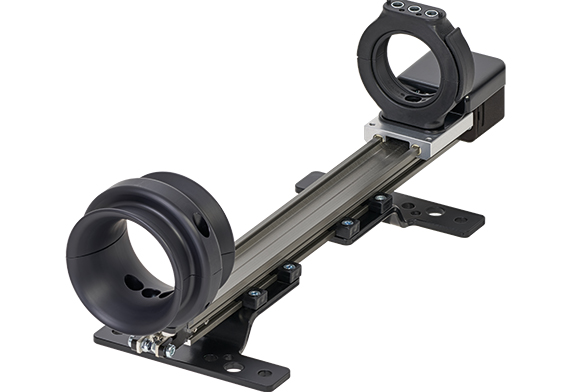

Retraction systems for axes 3-6

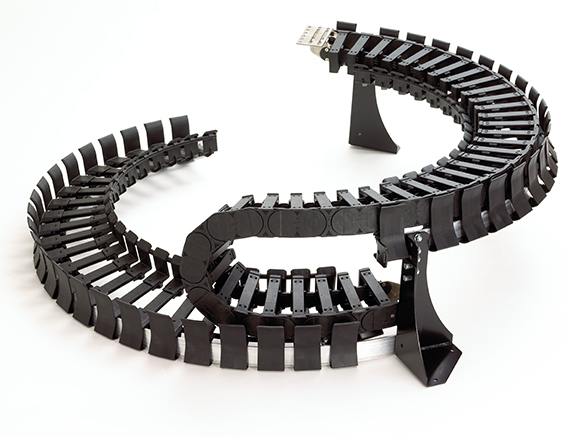

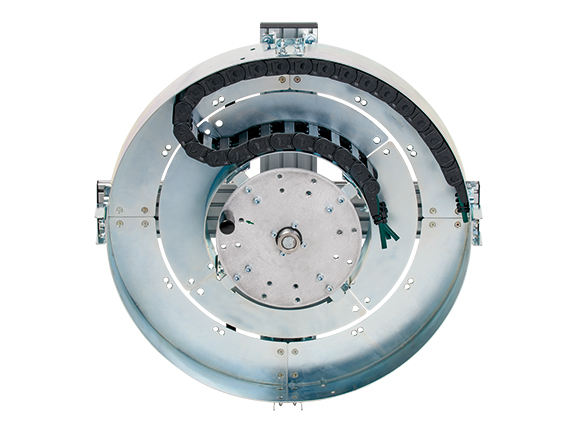

Systems for the axis 1

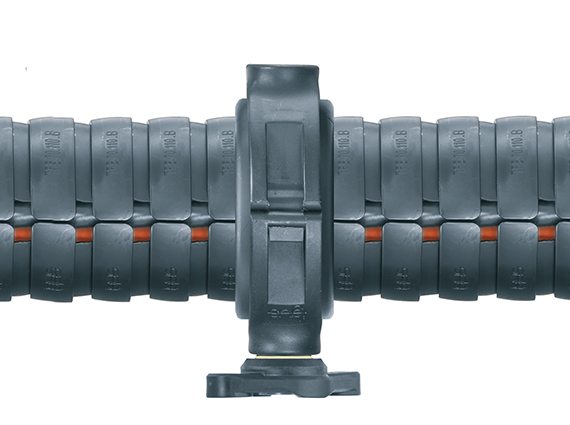

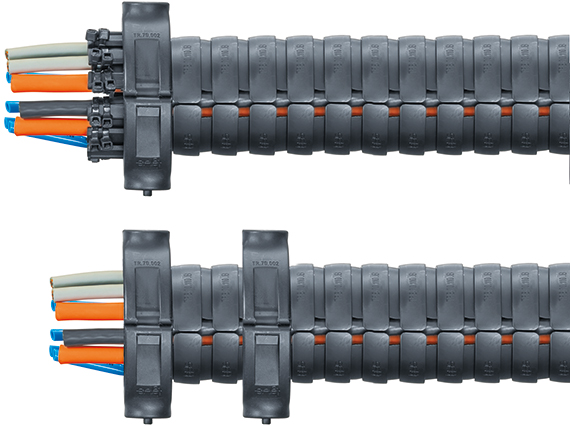

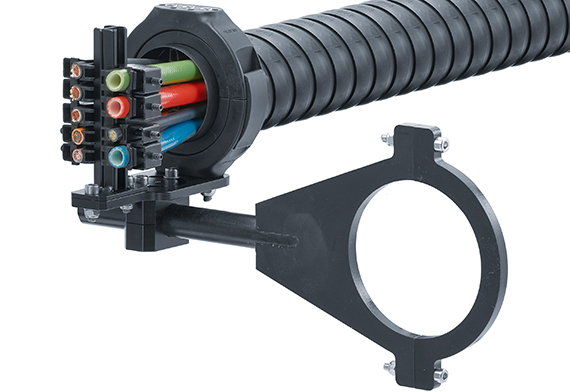

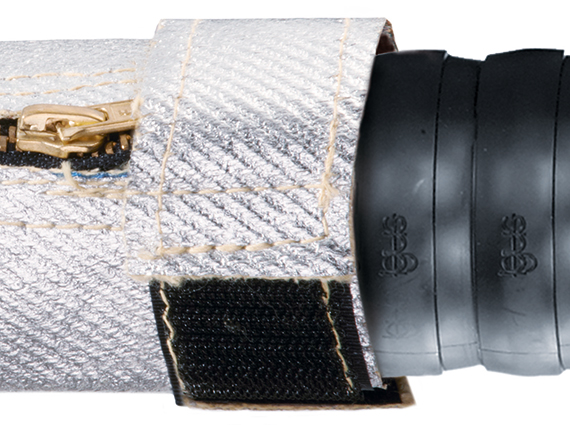

Accessories for robots

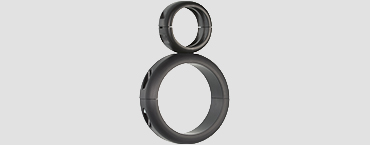

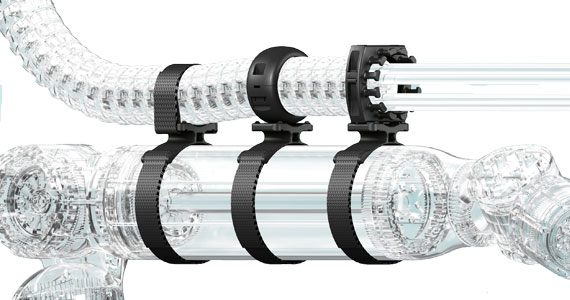

Energy supply system for cobots

Further robotics products

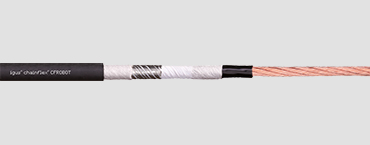

chainflex robot cables

chainflex® robot cables

Application examples of our customers

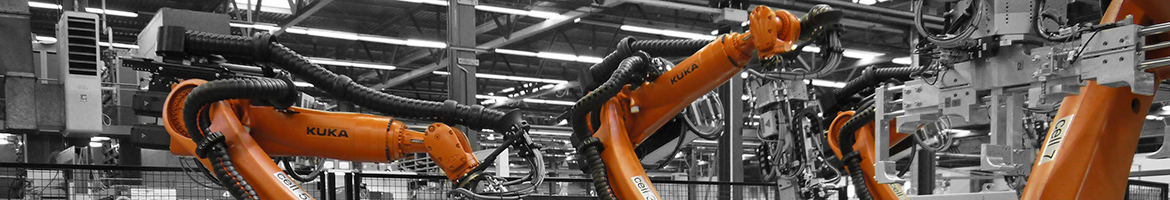

Three dimensional energy chains for robotic applications
Overview of triflex R applications

Further information

triflex assembly on the robot

triflex - installation videos
