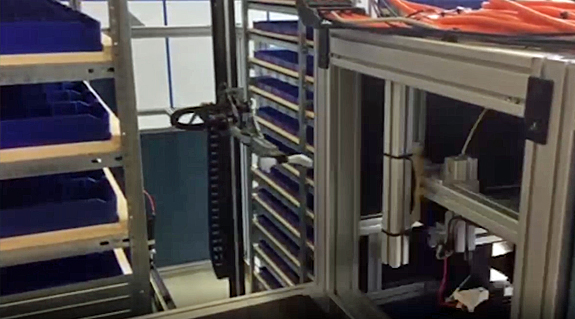

robolink® warehouse assistance
robolink® places individual parts on the appropriate warehouse shelves
My contact person
Hennlich, Industrijska d.o.o.
HR(EN)
robolink®- Application examples
The high degree of modularity and water-tight components are the features that make robolink® so universally usable. Depending on the application, a customised solution can be created from the robolink® construction kit and then supplemented with other products. In addition to conventional or water-tight igus® stepper motors, the robot joint can also be combined with other motors or pneumatic drives. The joint construction kit is not tied to any special control unit and thus enables the greatest possible degree of freedom when it comes to planning and the implementation of automation processes.
Underwater robots
All robolink® joints of this application are equipped with "underwater sensors".
New WAGO control system
iPad control system of the robolink® 6 DOF compact unit
Auxiliary arm for wheelchair patients
robolink® articulated arm 4 DOF and electric gripper as auxiliary arm
robolink® D trade fair site
robolink® D trade fair site at the Automatica 2014.
Gesture controlled robot torso
robolink® joints ina gesture controlled robot torso, implemented by Habib Nasri.
Automation solutions
Automation solutions from France using robolink® components.
robolink® at the Technical University, Munich
robolink® in use at the open house
Low cost automation demo
Low cost automation demo with robolink®, pikchain® and drylin® E
Positioning
The Alexa experiment at the Fraunhofer Institut IFF in Magdeburg attained a repeat accuracy of 1mm.
Torso
Torso with robolink® 5 DOF arms, built with beta test materials from the first prototypes.
Robotic assistance system "Rosy"
Converting gestures (i.e. eye blinking) into motion commands to assist people with physical disabilities.
Gesture-based control
robolink® articulated arm with angle sensors and drive unit for gesture-based control.
Fraunhofer Institut IFF by the ECHORD project
Fraunhofer Institut IFF, Magdeburg participates in the ECHORD project using a robolink® articulated arm.
Movement with voice control
4-axis arm drive unit and angle sensors to execute movement with "voice control".
Underwater system
Use of the articulated arm possible under water (even in dirty water).
Drive unit with igus® step motors
Drive unit with igus® step motors controlled
Crossing Campus
Project between igus® and the University of Saarland and the University of Wuppertal.
4-axis articulated arm
4-axis articulated arm with 2 joints, 4 drives and self-developed control system.
Electromagnetic gripper
Self-developed electromagnetic gripper for robolink® arm.
Animatronic head movement
The head movement is implemented by robolink® and requires only a drive motor.
Robot torso
In this torso there are no loose cable bundles or energy supply systems in the movable arm.
Movable puppet arm
Drive by connecting rod and lever: Implementation of a natural movement in a puppet arm with simple drive elements using robolink®.
Track vehicle with camera guide
Production of a track vehicle with camera guide with the robolink® multiple-axis joint.
Robofriend
An application that can approach positions, store these in a list and recall them - implemented with robolink® joints.
Pneumatic muscle and a servo motor
Pneumatic muscle ( own construction) and a servo motor
Arm prosthesis
Development of a prosthetic arm with the robolink® multiple-axis joint.
QuadHelix drive
Cable pulling technology in drives and mechanics: QuadHelix drive combined with igus® robolink®.
Camera slide
takes bird's eye view pictures with a robolink® camera slide with remote control.
Further examples of applications on YouTube
