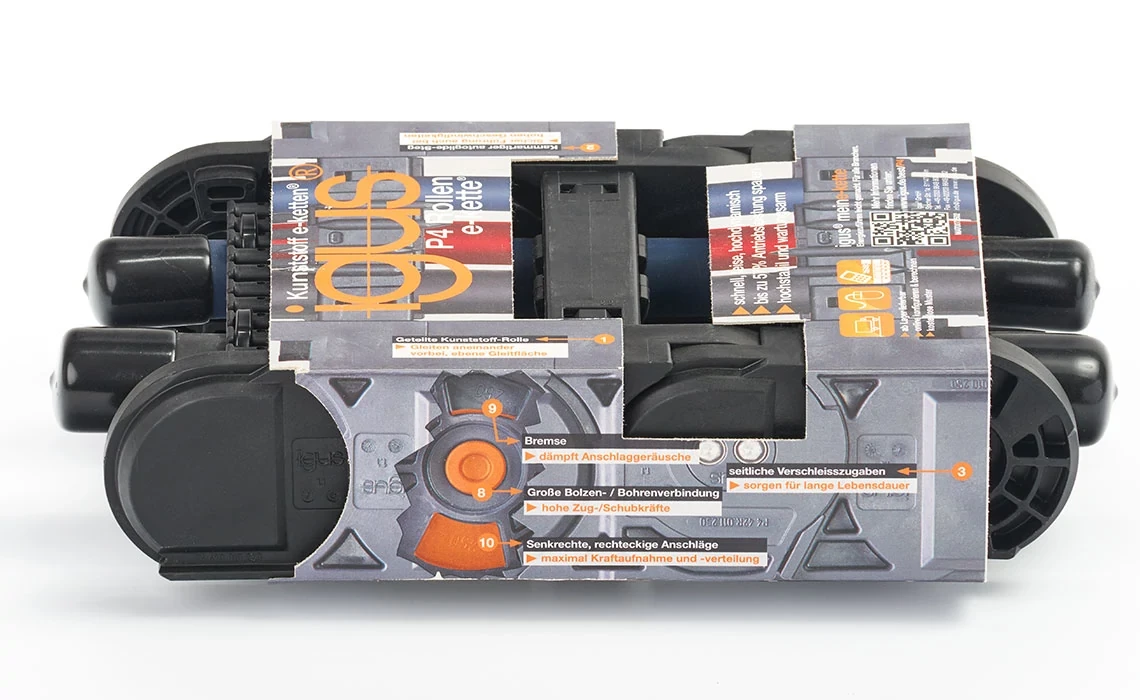

Product information for the P4

Safe, quiet, abrasion-resistant and energy-efficient on very long travels of up to 1,000m and more. igus P4 rol e-chain profile for very high fill weights and speeds. Increase energy efficiency and reduce energy consumption with the P4.

Order a free sample of the e-chain P4 and see the quality of our product for yourself.

Request a free sample E2/000

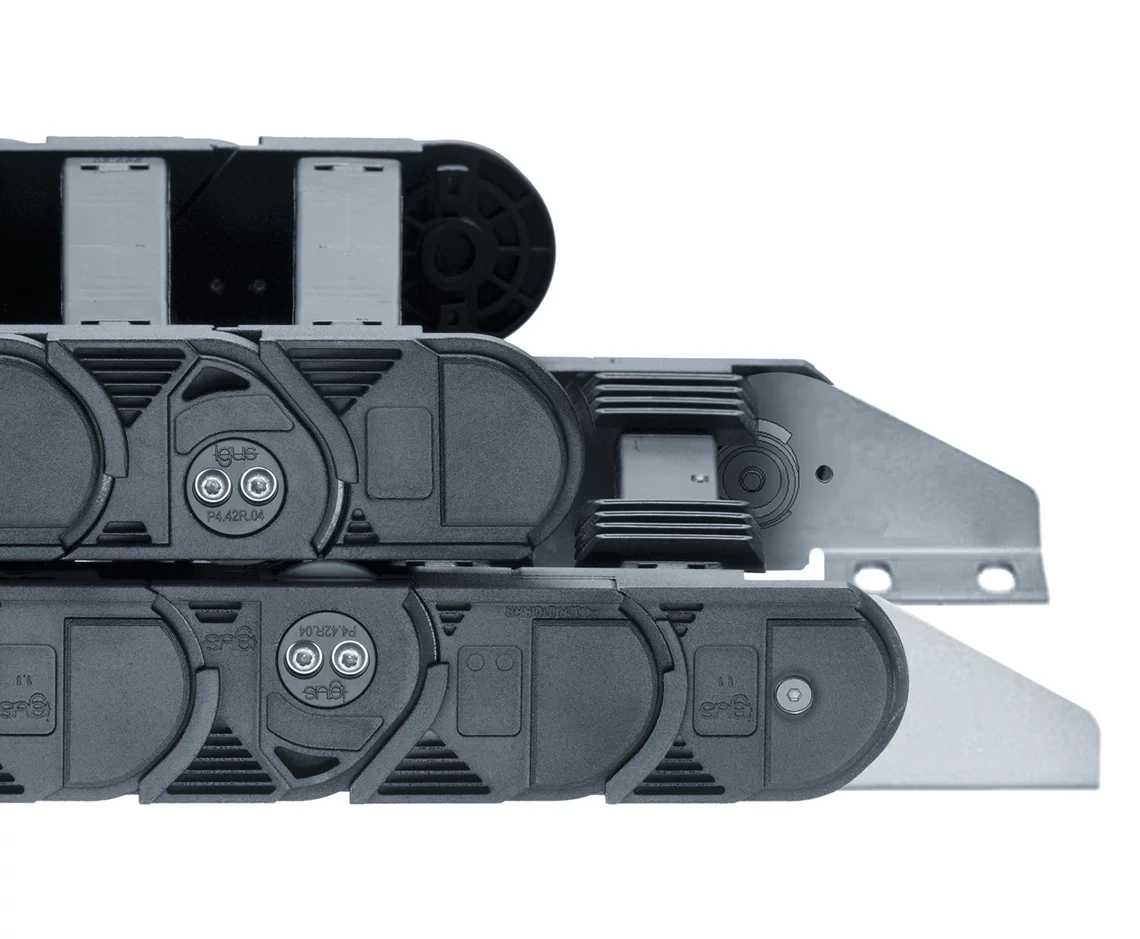

Discover all sizes of the e-chain P4 in our online shop.

To the P4 energy chain series

Split plastic roller

The offset between the upper run and lower run means that plastic rollers do not roll over each other, but slide past each other. Rollers slide over the entire travel on a smooth, even surface.

Comb-like autoglide crossbars

autoglide crossbars provide the necessary offset between the upper and lower run so that the rollers slide past each other.

Wear pad

Lateral contact inevitably occurs in the guide trough. The P4 system's long service life, even at high speeds, is guaranteed thanks to the wear pads.

Equal pitch

Equal pitch of the chain links with and without ensures smoother unrolling of the energy chain.

Undercut design

An "interlocking" of the chain links ensures a very high torsional strength of the energy chain and prevents the chain link from expanding under push/pull forces.

Special contour of the chain link

The contour ensures better unrolling of the energy chain and easier and safer installation.

Large pin/bore connection

More than two stop-dogs cannot or can hardly be synchronised. Due to the rectangular geometry, the force distribution is much better than with a round stop-dog (formula surface pressure, p=F/A). The complete P4 family has the double rectangular stop-dog.

Noise brake

Simple principle but highly effective. A wedge-shaped contour in the energy chain stop-dog dampens the impact noise of the energy chain.

Wear pad

For long service life on long travels. Every energy chain on a long travel manages at least 10,000km - often much more. This is a "promise" that we have been fulfilling for years.

Order a free sample of the e-chain P4 and see the quality of our product for yourself.

Request a free sample E2/000

Discover all sizes of the e-chain P4 in our online shop.

To the P4 energy chain series
