Cross slide drylin® SHT/SHT-PL

Special properties cross slide

High precision, extreme stiffening and precise alignment through CNC production

Available as standard and preload version

100% lubricant-free and completely corrosion-free

Adjustments by trapezoidal thread TR 10x2

Mounting of upper unit with right or left alignment possible

Available accessories (hand wheel, cursor ...)

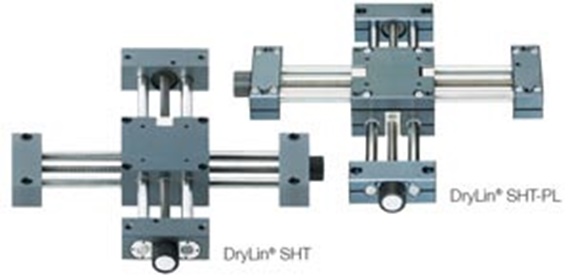

Cross slide
Suitable for this cross slide parts:

SHT/SHT-PL - cross slide

Part No.:

Ordering a complete cross slide system

Configuration of cross slide in few steps:

1. Selection of the installation size
2. Selection of the stroke length in mm
3. Selection of the accessory parts

Hint:

Detailed information can be found below in the drawings and tables as well as in the below mentioned pages.

Step 1Configuration settings: drylin® SHT/SHT-PL - cross slide - complete system

Select the installation size of the cross slide.


Installation size:

12 = Shaft Ø 12 mm, TR10x2
20 = Shaft Ø 20 mm, TR18x4

More information and cross slide accessories

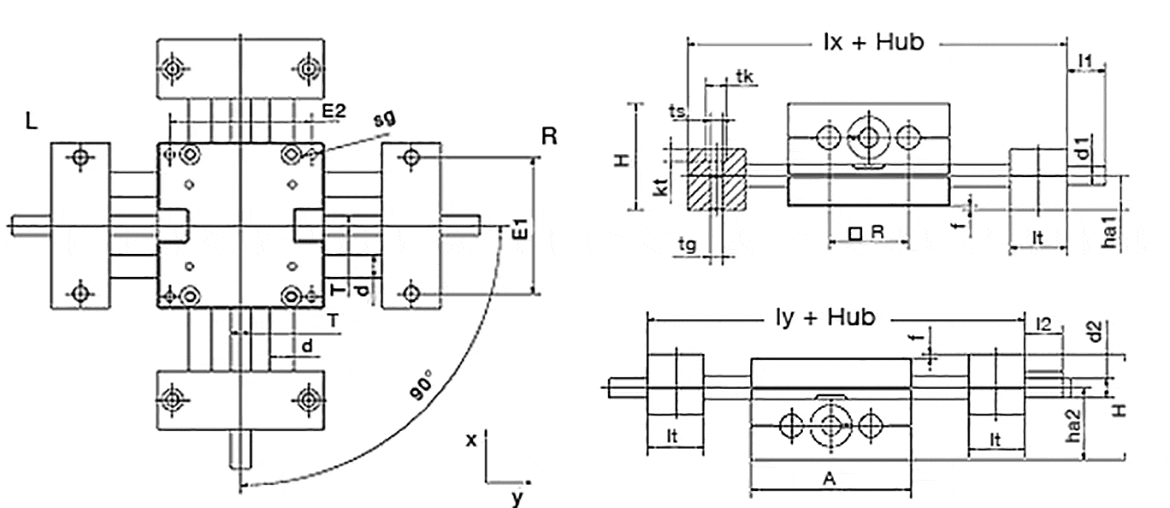

Drawing cross slide
Cross slide lengths and weights [mm]
Order no. A
-0.3
[mm]
H

[mm]
E1
±0,15
[mm]
E2
±0,15
[mm]
Base-
length lx
[mm]
Base-
length ly
[mm]
R

[mm]
f

[mm]
lt
±0,1
[mm]
tk

[mm]
ts

[mm]
tg

kt

[mm]

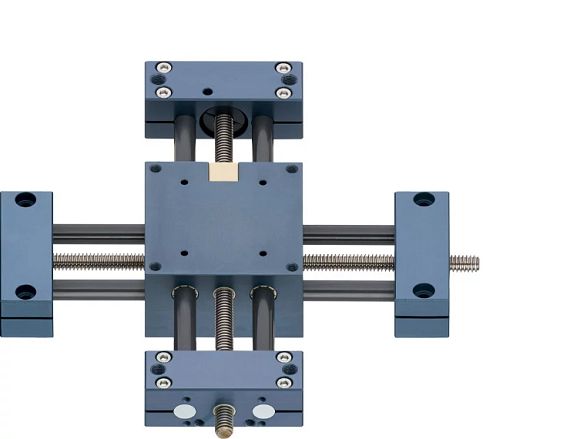

 SHT-XY-12 85 56 70 73 145 145 42 2 30 11 6.6 M8 6.4

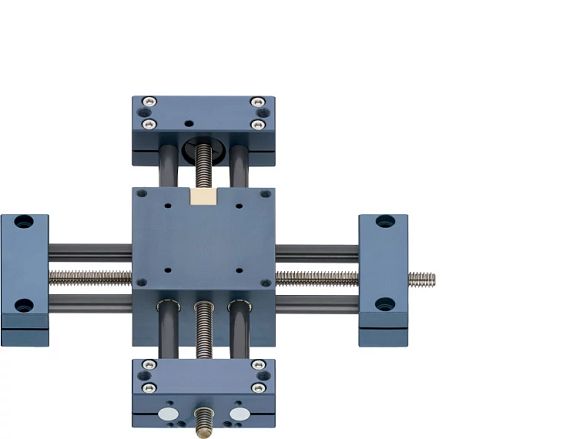

 SHT-XY-08 65 42 52 56 96 96 32 1.5 15.5 10 5.5 M6 7

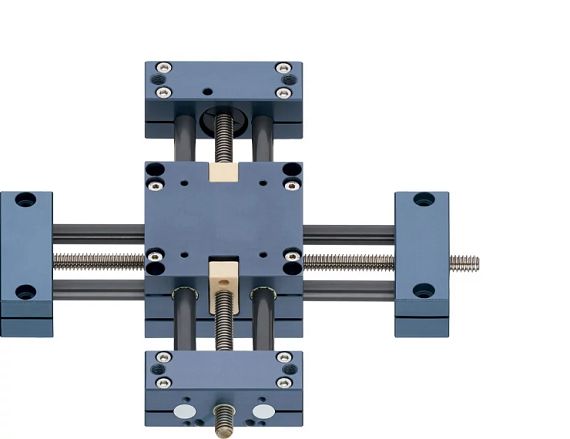

 SHT-XY-12-PL 85 56 70 73 145 145 42 2 30 11 6.6 M8 6.4

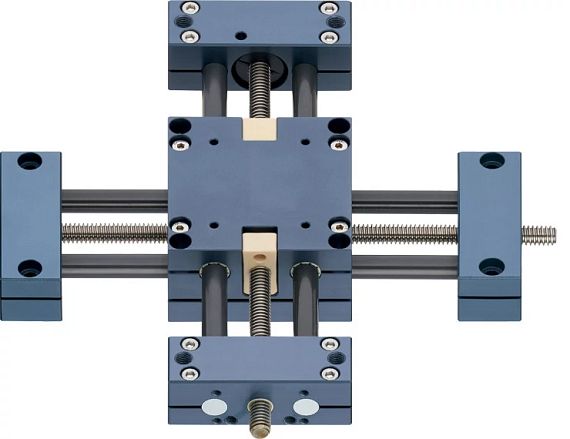

 SHT-XY-20-EWM-PL 130 86 108 115 202 202 72 2 36 15 9 M10 8.6
More about selected part:
3D-CAD Sample request Experts PDF Quote request Price list myCatalog
Cross slide dimensions [mm]
Order no. sg


d

[mm]
T

l1

[mm]
d1
Standard
d1
Alternativ
l2

[mm]
d2
Standard
d2
Alternativ
ha1

[mm]
ha2

[mm]
W
ha2-ha1
[mm]
 SHT-XY-12 M6 12 - 17 TR10x2 6h9 17 - 6h9 18 38 20
 SHT-XY-08 M5 8 TR6x2/TR6,35x2,54 15.5 TR6x2/TR6,35x2,54 5 15 - 5 13 29 16
 SHT-XY-12-PL M6 12 - 17 TR10x2 6h9 17 - 6h9 18 38 20
 SHT-XY-20-EWM-PL M8 20 - 26 TR18x4 - 26 - 12h9 23 63 40
More about selected part:
3D-CAD Sample request Experts PDF Quote request Price list myCatalog

You can order the hand wheel of the y-axis to be mounted left or right.
Left: SHT-XY-12-AWM-L-200-300 for 200 mm stroke lengths in x-direction and 300 mm in y-direction.
Right: SHT-XY-12-AWM-R-200-300 for 200 mm stroke lenghts in x-direction und 300 mm in y-direction
