Profile rol e-chain® P4: for very high fill weights and speeds

Over 1,000 systems with conventional rol e-chains are in continuous use worldwide. The industry, and crane construction in particular, is placing ever greater demands on travel length, fill weight, special and high travelling speeds with smooth operation. We fulfil these requirements with the P4 system. Systems of this type should be designed by our project engineers - we would be happy to provide you with a quotation. Please do not hesitate to contact us.

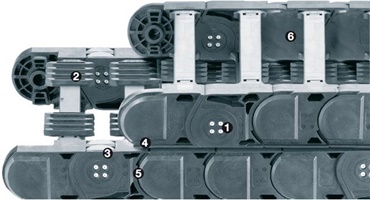

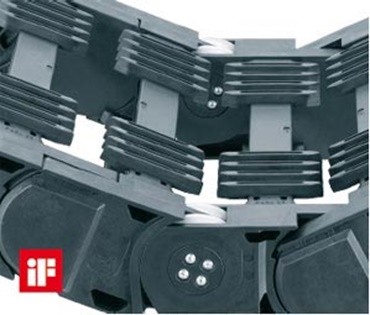

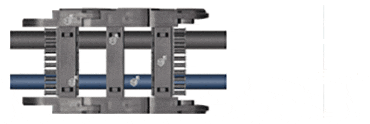

rol e-chain® P4
Further benefits at a glance

Technical data:

Speed gliding Acceleration gliding igumid G material, permitted temperature °C Flammability class, igumid G
≤ 6 [m/s] ≤ 50 [m/s2] -40°C/+120°C VDE 0304 IIC UL94-HB

Product range:

Product range:

P4.32

P4.32 series
Inner height: 32mm
Inner width: 100 to 250mm
Outer width: 132 to 282mm
Outer height: 54mm
Bend radius: 150 to 200mm

Request a project consultation now
P4.42

P4.42 series
Inner height: 42mm
Inner width: 100 to 200mm
Outer width: 154 to 254mm
Outer height: 64mm
Bend radius: 100 to 350mm

Request a project consultation now

Test for long travels

The rol e-chain was tested with a travel speed of up to 8 m/s over a distance of currently 200m, which corresponds to 400m of travel. The fully automated system takes into account a wide range of applications in terms of acceleration and speed. In addition to the mechanical load caused by the movement of the transfer vehicle, environmental influences have an unimpeded effect on the tested energy chain and cable.

System P4 realised in practice

Forming technology

Forming technology

Dynamic feeding of plates by means of P4 profile rol e-chains for especially quiet, fast and vibration-free operation involving high speeds and heavy fill weights.

  • Learn more
    • Gantry loader

    Gantry loader

    Smooth-running energy chain and harnessed cable sets are the perfect choice for supplying energy and signals in this gantry loader from the Gehring Group.

  • Learn more
    • Linear robot

    Linear robot

    The roller energy supply permanently withstands the high acceleration and speed in the linear robot. There is no need to compromise on machine availability.

  • Learn more

    • You might also be interested in this

    P4.1 system

    P4.1 system
    The latest generation of P4.1 rol e-chain with maintenance-free plain bearings and intelligent wear sensor ensures a longer service life.

    To the product

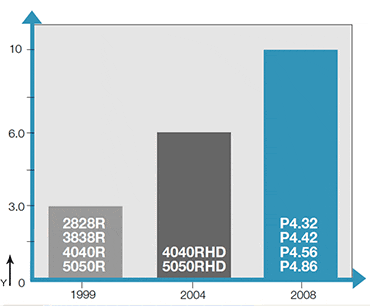

    The evolution of the rol e-chains

    Evolution of the rol e-chain
    We have been continuously improving our rol e-chains for long travels and heavy duty for over 20 years. They are quiet, low-vibration, low-wear and require 57% less effort.

    Learn more
    Long travels

    Long travels
    Everything you need to know about "long travels": suitable energy chain systems, application areas, system comparisons, tests, installation manual etc.
