drylin® E special motor with connector and splash protection, NEMA 23
- Installation size: NEMA23 / Flange dimension 56mm
- Protection class: IP65
- Holding torque: 1.70Nm
- Nominal current: 3.00A
- Motor connection: Metric M12 connector
- Shaft seal prevents ingress of water
Product description
The IP65 (splash water) stepper motors are ideally suited for applications in humid environments.
Applications in the food, outdoor or spray water sector can now also be operated by motor with the proven drylin® linear systems. The IP65 stepper motor can be cleaned with water.
Stepper motors from igus® are a good supplement to drylin® linear axes. They are characterised by their cost-effectiveness, their precision and easy control. They work reliably under the most varied environmental conditions (depending on the selected class of protection IP). The igus® stepper motors can be connected to the most common motor controls using standardised electrical connection.
The connector interface provides a high IP65 protection level (IP: International Protection). The higher the IP rating, the better the motor is protected from the ingress of dirt and water.
Applications in the food, outdoor or spray water sector can now also be operated by motor with the proven drylin® linear systems. The IP65 stepper motor can be cleaned with water.
Stepper motors from igus® are a good supplement to drylin® linear axes. They are characterised by their cost-effectiveness, their precision and easy control. They work reliably under the most varied environmental conditions (depending on the selected class of protection IP). The igus® stepper motors can be connected to the most common motor controls using standardised electrical connection.
The connector interface provides a high IP65 protection level (IP: International Protection). The higher the IP rating, the better the motor is protected from the ingress of dirt and water.
Technical data
Downloads
Other solutions
Jaw coupling with square axis clamp
Vibration dampening and easy fitting
68.10 EUR/Pc.
Jaw coupling with round axis clamp
Vibration dampening and easy fitting
56.39 EUR/Pc.
drylin® D1 motor control system for stepper, DC and EC/BLDC motors
Stepper (ST), DC and EC/BLDC motors with up to 21A peak currents and 48V
651.94 EUR/Pc.
chainflex® CF240 data cable
For medium duty applications, PVC outer jacket, shielded, oil-resistant and flame-retardant
2.40 EUR/m
Motor flange for stepper and DC motors (motor bell)
Matches the drylin® E coupling
71.11 EUR/Pc.

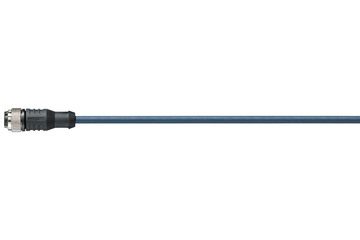

chainflex® Connection cable straight M12 x 1, CF.INI CF9
Socket at the cable front, cable ends cut
18.14 EUR/Pc.

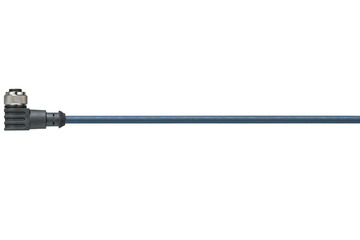

chainflex® Connection cable angled M12 x 1, CF.INI CF9
